For a single-phase installation
Pulsar Max 7.4 kW
For home charging with a suitable single-phase supply.
5 m Type 2 cable · WiFi and Bluetooth
CHARGE FACTORY · WALLBOX PULSAR MAX
7.4 or 22 kW? Choose for your installation.
Your electrical supply comes first, then your car's AC charging limit. A higher rated output does not always mean faster charging.
For a three-phase installation

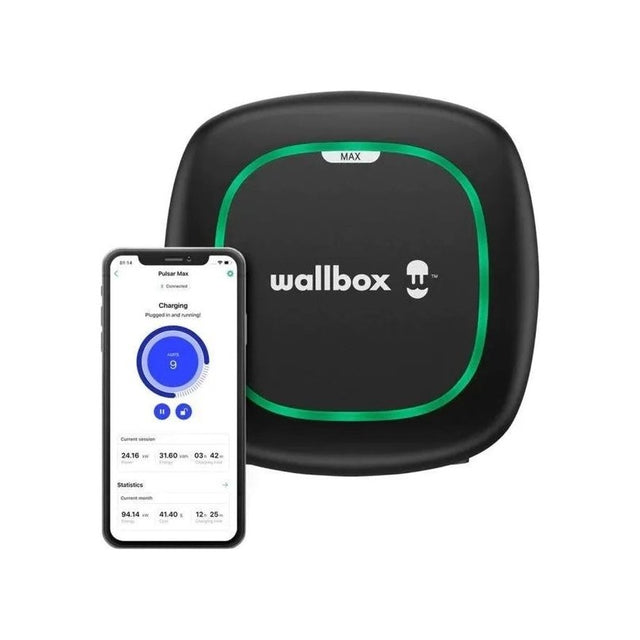

Pulsar Max 22 kW
Up to 22 kW when your installation and vehicle support that AC output.
5 m Type 2 cable · WiFi and Bluetooth
Know what is includedWallbox Pulsar Max unit with a fixed 5 m cable and Type 2 connector. Installation, external protection and an additional meter are not included.
Shipping and deliveryFree standard shipping from €300. Estimated delivery: 2–4 working days. Delivery options and destinations
14-day returnsFor consumer purchases, from receipt. Customers pay return shipping for a change of mind. Consumers · see conditions
CHARGE FACTORY · VIDEO GUIDE
7.4 or 22 kW?
Choose wisely.
Your installation and your car make the difference. We explain how to choose and check your car in 1 minute and 8 seconds.
The video could not be started. Open video
7,4 kWSingle-phase installation
22 kWThree-phase and car compatible
In both5m Type 2 Cable
The actual power depends on the car and installation. Confirm it with a professional. Installation not included.
Read the explanation
7.4 or 22 kW wallbox? At Charge Factory we help you choose without complications. Don't choose just by the number: check your installation and the load capacity of your car. The 7.4 kW Pulsar Max is designed for a single-phase installation, common in many homes. To reach 22 kW you need a three-phase installation and a car that accepts that power in alternating current. If the car supports less, the charging power will be limited: choosing the highest power charger does not mean that you will charge faster. Before purchasing, confirm this information with a professional installer. To check which charger your car can use, go to the Charge Factory tool. Select make, model and year. Both models include a five-meter Type 2 cable. Installation is not included in the purchase of the equipment. Consult the two sheets on chargefactory.es, compare the characteristics and choose the right model for your home.
Read the full technical comparison
Are you looking for a car battery charger? For an electric vehicle, you need a charging point compatible with its traction battery and charging port. A 12 V battery charger or maintainer has a different function. In this guide, we compare two home electric car chargers: the 7.4 kW and 22 kW Wallbox Pulsar Max.
Choosing between a 7.4 kW and a 22 kW Wallbox Pulsar Max depends mainly on your electrical installation and the AC charging power your car supports. The higher figure does not guarantee faster charging in all homes.
Quick comparison: single-phase versus three-phase
| Feature | Pulsar Max 7.4 kW | Pulsar Max 22 kW |
|---|---|---|
| Reference | PLP4-0-2-2-9-002 | PLP4-0-2-4-9-002 |
| Installation for maximum power | Suitable for single-phase | Suitable for three-phase |
| Maximum rated power | 7.4 kW | 22 kW |
| Rated current | 32 A | 32 A per phase |
| Cable | 5-metre fixed Type 2 | 5-metre fixed Type 2 |
| Connectivity | WiFi and Bluetooth | WiFi and Bluetooth |
When to choose the 7.4 kW model
If your home has a single-phase supply, the Wallbox Pulsar Max 7.4 kW is the option designed for this type of installation. Before buying, confirm the available power, necessary protections, and compatibility with your vehicle with an authorised installer.
When is the 22 kW model worth it
The Wallbox Pulsar Max 22 kW can reach its rated power when the grid is three-phase, the installation and available power allow it, and the vehicle's onboard charger accepts 22 kW AC. In a single-phase installation, it can operate at approximately 7.4 kW, depending on the configuration. Buying the 22 kW model does not remove the limitations of the car or the electrical supply.
What both models have in common
Both chargers are black, compact, and feature a 5-metre fixed Type 2 cable, WiFi, Bluetooth, and control via the Wallbox app. They have IP55 and IK10 protection. Features such as Power Boost and Eco-Smart require a compatible Wallbox meter sold separately. The installation, external protections, and additional accessories are not included in the equipment price.
Buy the right power
Check your home's supply type, the AC charging power supported by your vehicle, and the contracted power. Then, check the shipping terms and buy directly from the product page of the model that suits you. Both are sold with VAT included. Standard shipping costs €5.40 and is free for orders over €300; express shipping costs €8.20 to eligible Spanish destinations at checkout. The estimated total time is 2–4 business days for standard and 2–3 for express, including preparation.
Still have questions? Write to us at info@chargefactory.es or call +34 603 016 699. An authorised installer must confirm the solution for your installation.
